> Products>Optocouplers / Photocouplers>AC Input>H11AA4S1(TA)-V

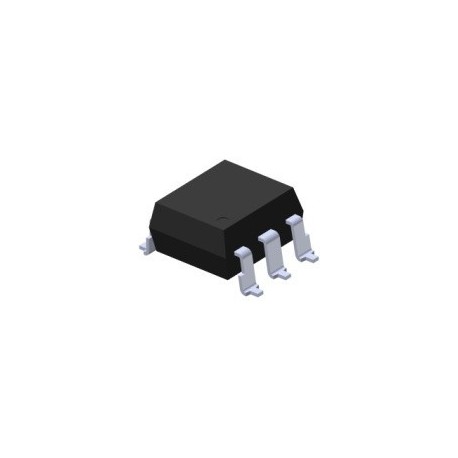

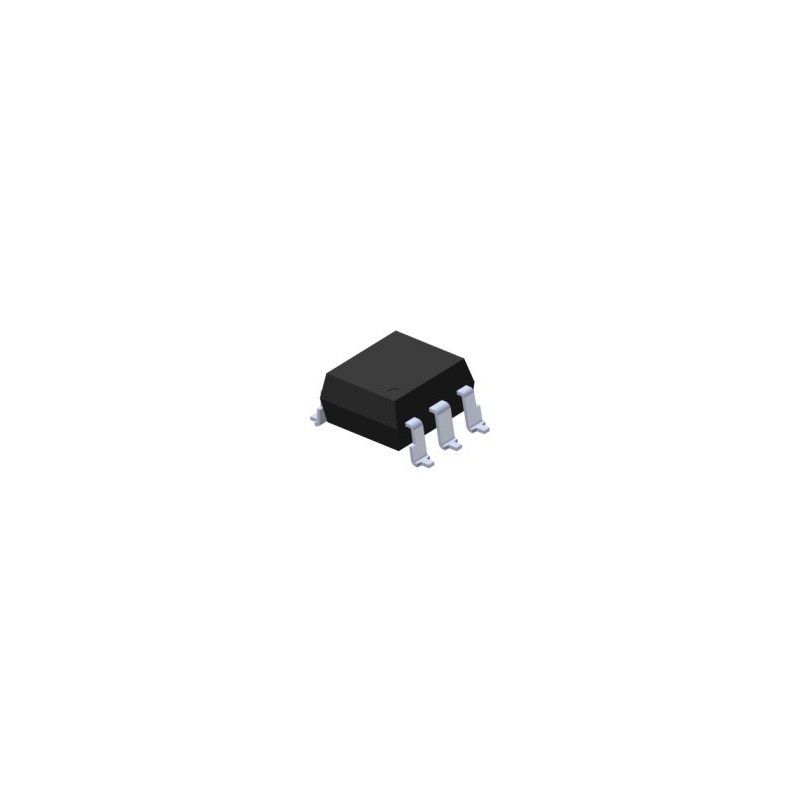

H11AA4S1(TA)-V View larger

Part Number: H11AA4S1(TA)-V


6-Pin Optocoupler - AC Input

More details

On Backorder

    Description: Photocoupler - AC Input

    Features:
    High isolation voltage between input and output (Viso=5000 V rms )
    Creepage distance >762 mm

    Applications:
    AC line monitor, Unknown polarity DC sensorProgramma

    Number of ChannelsSingle
    PackagingTape & Reel
    Package6-Pin DIP Low Profile
    Number of Pins6Pins
    MountingSMD
    Min. Storage Temp.-55C
    Min. Operating Temp.-55C
    Min. Isolation Voltage5000V
    Width7.12mm
    Height3.5mm
    Max. Forward current60mA
    Max. Fall Time10uS
    Length6.5mm
    Max. Rise Time10uS
    Min. CTR100%
    Max. Storage Temp.125C
    Max. Saturation Voltage Vce0.4V
    Max. Power Dissipation200mW
    Max. Operating Temp.100C
