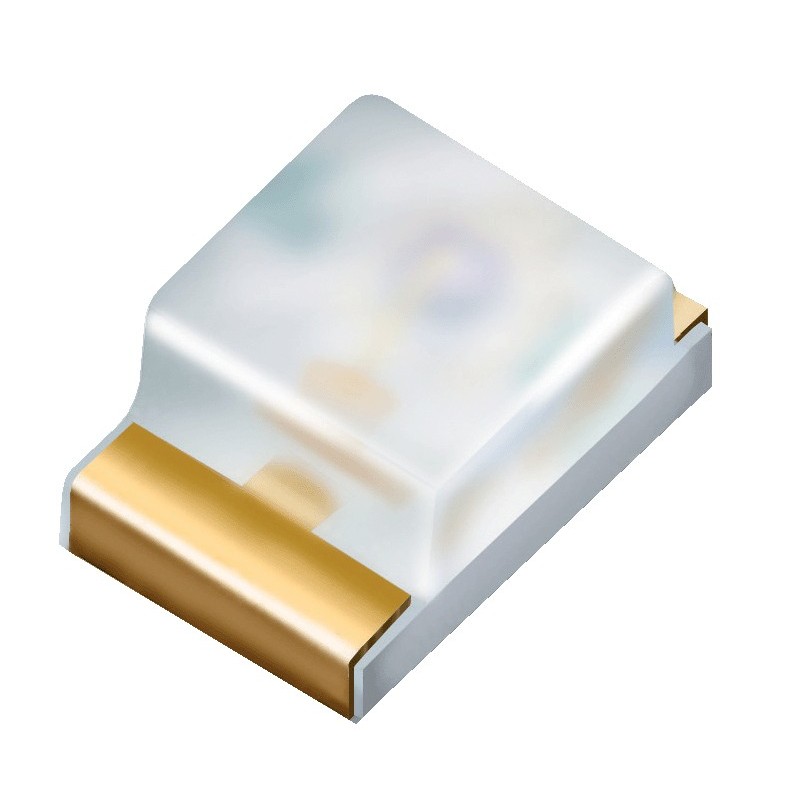

Part Number: 17-215-Y2C-P9Q2S1B0E-3T-AM

Description:
The 17-215 SMD LED is much smaller than lead frame type components, thus enable smaller board ize, higher packing density, reduced storage space and finally smaller equipment to be obtained.
Besides, lightweight makes them ideal for miniature applications. etc.

Features:
RoHS compliant
Chip LED package.
Colorless clear resin.
Wide viewing angle 130°.
Brightness: 90 to 224 mcd at 20mA.
Qualification according to AEC-Q101.
Precondition: Bases on JEDEC J-STD 020 Level 3.
Automotive reflow profile (IR reflow or wave soldering)
Compliance with EU REACH.
Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

Applications:
Automotive backlighting or indicator: Dashboard, switch, audio and video equipments…etc.
Backlight: LCD, switches, symbol, mobile phone and illuminated advertising.
Display for indoor and outdoor application.
Ideal for coupling into light guides.
Substitution of traditional light.
Optical indicator.
General applications.
