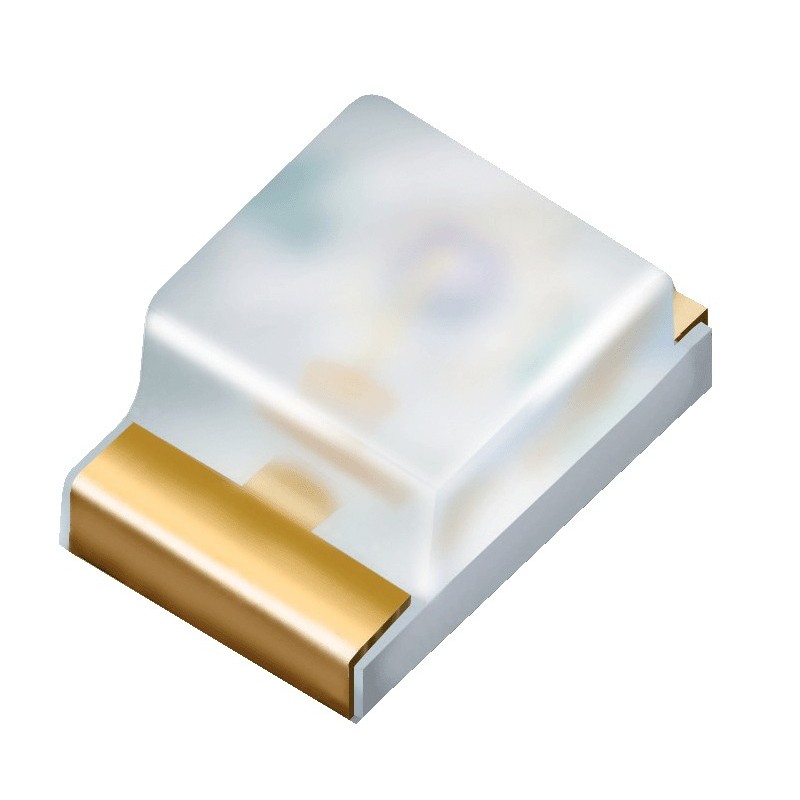

17-215-GPC-R7L1M2L0E-3T-AM View larger

Part Number: 17-215-GPC-R7L1M2L0E-3T-AM


Mid Green

Single Color PCB Top View SMD LED Green

More details

In Stock

3000 Parts

    Description:
    The SMD LED is much smaller than lead frame type components, thus enable smaller board ize, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    Besides, lightweight makes them ideal for miniature applications. etc.

    Features:
    RoHS compliant
    Chip LED package.
    Colorless clear resin.
    Wide viewing angle 130°.
    Brightness: 11.2 to 28.0 mcd at 20mA.
    Qualification according to AEC-Q101.
    Precondition: Bases on JEDEC J-STD 020 Level 3.
    Automotive reflow profile (IR reflow or wave soldering)
    Compliance with EU REACH.
    Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

    Applications:
    Automotive backlighting or indicator: Dashboard, switch, audio and video equipments…etc.
    Backlight: LCD, switches, symbol, mobile phone and illuminated advertising.
    Display for indoor and outdoor application.
    Ideal for coupling into light guides.
    Substitution of traditional light.
    Optical indicator.
    General applications

    PackagingTape & Reel
    Package2012
    Off State Lens ColorWater Clear
    Test Current20mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.7V
    Width1.2mm
    Viewing Angle130 deg.
    TypeLow-Mid Power
    Min. Flux11.2mcd
    Thickness0.8mm
    Max. Forward current30mA
    Max. Flux28mcd
    Max. Dominant Wavelength564nm
    Length2mm
    Max. Forward Voltage2.3V
    Min. Dominant Wavelength557nm
    Max. Storage Temp.90C
    Max. Pulsed Current60mA
    Max. Operating Temp.85C
