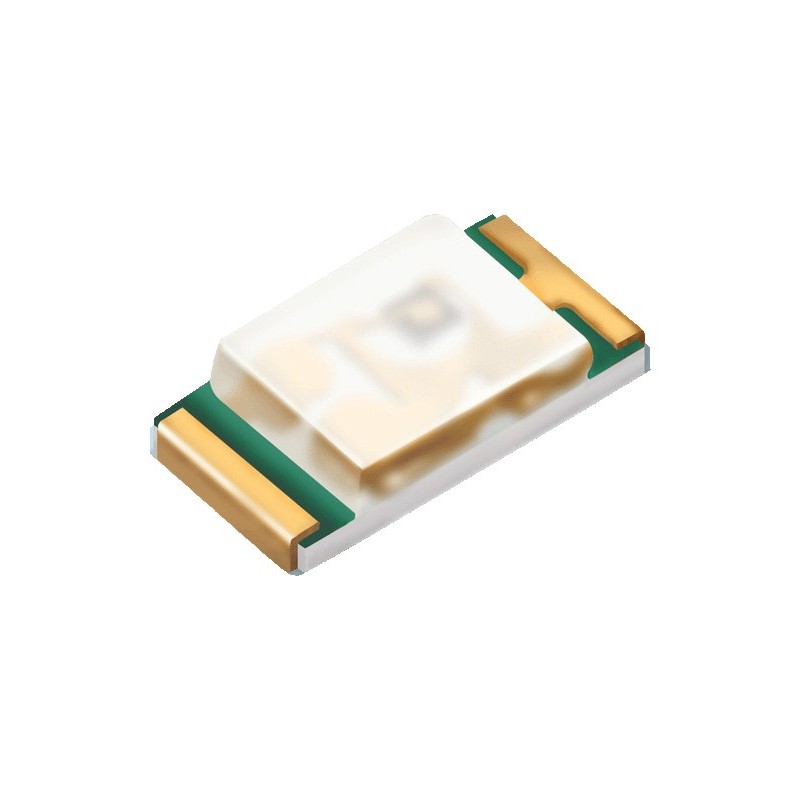

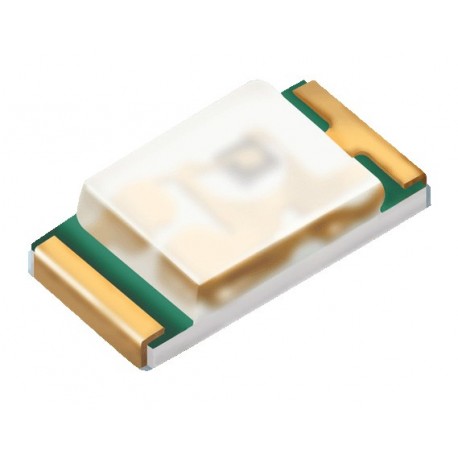

19-217-S2C-A0L2M2L0B-3T-AM View larger

Part Number: 19-217-S2C-A0L2M2L0B-3T-AM


Yellow

Single Color PCB Top View SMD LED Amber

More details

In Stock

122 Parts

    Description:
    The SMD LED is much smaller than lead frame type components, thus enable smaller board ize, higher packing density, reduced storage space and finally smaller equipment to be obtained.
    Besides, lightweight makes them ideal for miniature applications. etc.

    Features:
    RoHS compliant
    Chip LED package.
    Colorless clear resin.
    Wide viewing angle 120°
    Brightness:14.0 to 28.0 mcd at 5mA.
    Qualification according to AEC-Q101.
    Precondition: Bases on JEDEC J-STD 020 Level 3.
    Automotive reflow profile (IR reflow or wave soldering)
    Compliance with EU REACH
    Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm).

    Applications:
    Automotive backlighting or indicator: Dashboard, switch, audio and video equipments…etc.
    Backlight: LCD, switches, symbol, mobile phone and illuminated advertising.
    Display for indoor and outdoor application.
    Ideal for coupling into light guides.
    Substitution of traditional light.
    Optical indicator.
    General applications.

    PackagingTape & Reel
    Package1608
    Off State Lens ColorWater Clear
    Test Current5mA
    MountingSMD
    Min. Storage Temp.-40C
    Min. Operating Temp.-40C
    Min. Forward Voltage1.7V
    Width0.8mm
    Viewing Angle120 deg.
    TypeLow-Mid Power
    Min. Flux14mcd
    Thickness0.4mm
    Max. Forward current30mA
    Max. Flux18mcd
    Max. Dominant Wavelength612.5nm
    Length1.6mm
    Max. Forward Voltage2.3V
    Min. Dominant Wavelength600.5nm
    Max. Storage Temp.90C
    Max. Pulsed Current60mA
    Max. Operating Temp.85C
