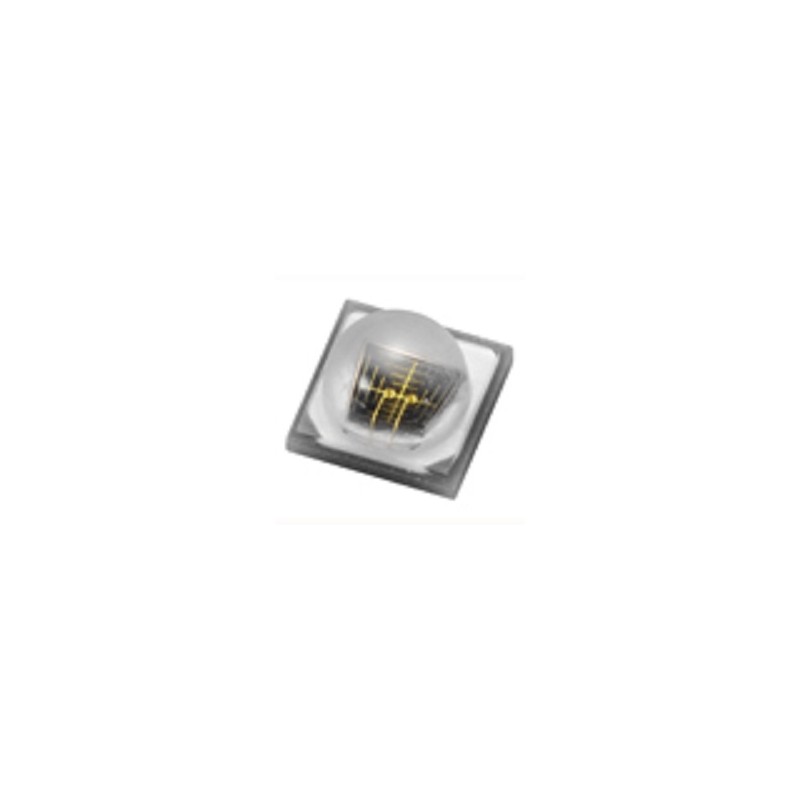

View larger

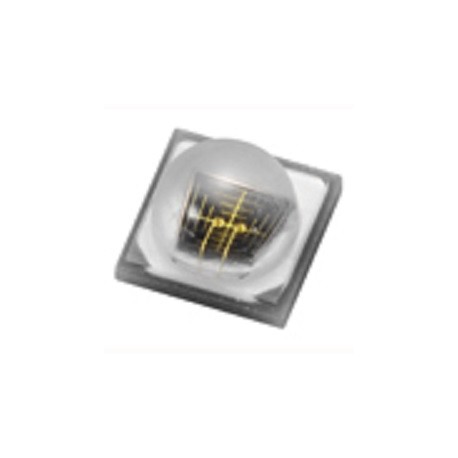

Part Number: IR-C19D-N90/L562-P03/TR
IR Emitter - SMD
Descriptions:
IR-C19D-N90/L562-P03/TR series is an infrared emitting diode in miniature SMD package which is molded in a water clear silicone with spherical top view lens. The device is spectrally matched with silicon photodiode, Phototransistor.
Features:
Small package with high efficiency
Peak wavelength λp=940nm
Soldering methods:SMT
Thermal resistance (junction to lead): 11℃/W.
Pb free
The product itself will remain within RoHS compliant version.
Applications:
CCD Camera
Infrared applied system
| Peak Wavelength | 940nm |
| Packaging | Tape & Reel |
| Package | 3535 |
| Orientation | Top View |
| Off State Lens Color | Water Clear |
| Test Current | 350mA |
| Mounting | SMD |
| Min. Storage Temp. | -40C |
| Min. Radiant Intensity | 150mW/sr |
| Min. Operating Temp. | -40C |
| Typ. Forward Voltage | 3.1V |
| Width | 3.5mm |
| Viewing Angle | 90 deg. |
| Type | Emitter |
| Typ. Radiant Intensity | 170mW/sr |
| Thickness | 2.36mm |
| Length | 3.5mm |
| Max. Storage Temp. | 100C |
| Max. Operating Temp. | 85C |
