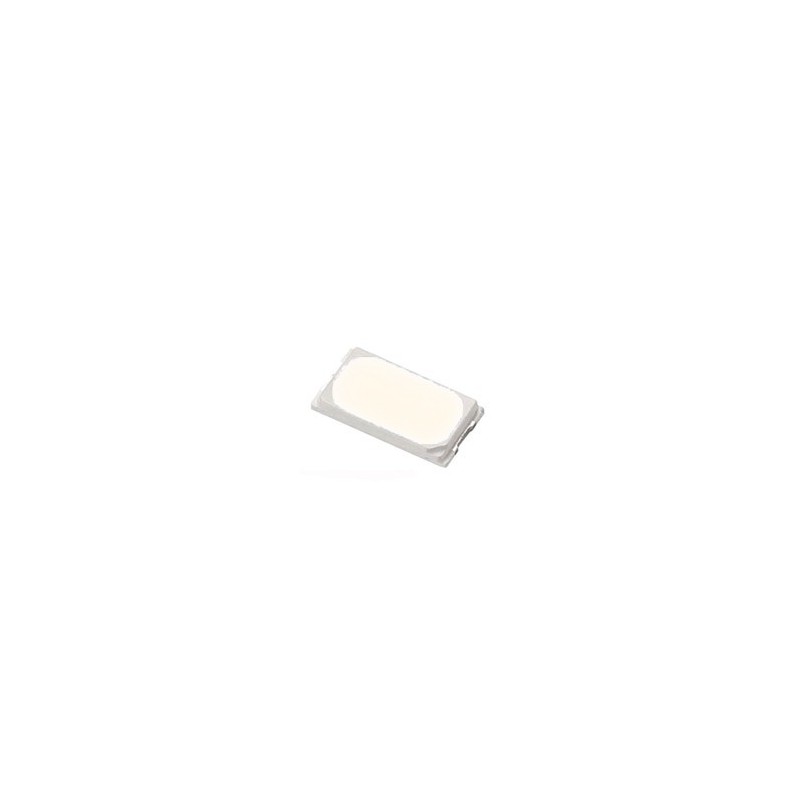

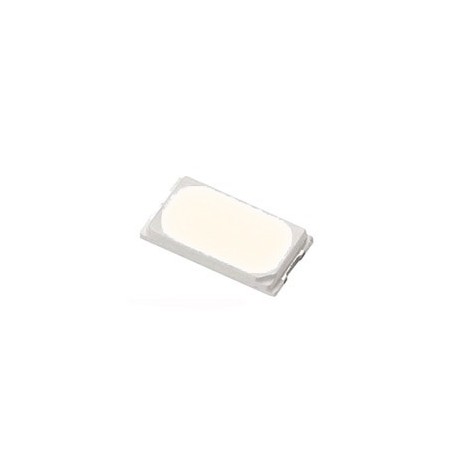

Part Number: EAHP5630GA0
Dark Green
Green Lighting LED
Descriptions
Due to the package design, EAHP5630GA0 has wide viewing angle. This feature makes the LED ideal for light guide application.
Features
Top view LED
High luminous flux output
High current capability
White package
Wide viewing angle
Pb-free
The product itself will remain within RoHS compliant version.
Precondition: Bases on JEDEC J-STD 020D Level 3
Applications
Decorative and Entertainment Lighting.
Light pipe application
Indicator and backlight in office and family equipment
General use
| Package | 5630 |
| Mounting | SMD |
| Type | Low-Mid Power |
| Length | 5.6mm |
| Width | 3mm |
| Thickness | 0.65mm |
| Typ. Dominant Wavelength | 518nm |
| Viewing Angle | 120 deg. |
| Min. Flux | 5600mcd |
| Max. Flux | 11200mcd |
| Test Current | 150mA |
| Max. Forward current | 150mA |
| Min. Forward Voltage | 2.7V |
| Max. Forward Voltage | 3.7V |
| Max. Pulsed Current | 100mA |
| Min. Operating Temp. | -40C |
| Max. Operating Temp. | 85C |
| Packaging | Tape & Reel |
| Min. Storage Temp. | -40C |
| Max. Storage Temp. | 90C |
